Installation and Removal
MAIN HOMEPAGE
ZENITH HOMEPAGE
OVERVIEW & CROSS SECTIONS
SPECS & ADJUSTMENTS
STRIPDOWN - PAGE ONE
STRIPDOWN - PAGE TWO
STRIPDOWN - PAGE THREE
SETUP & BALANCING

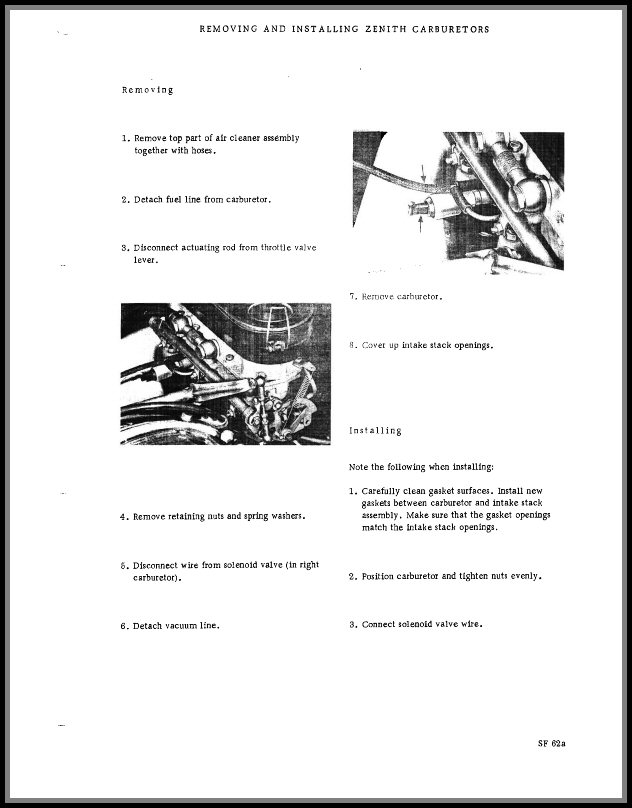

Removal and Installation
Page 1

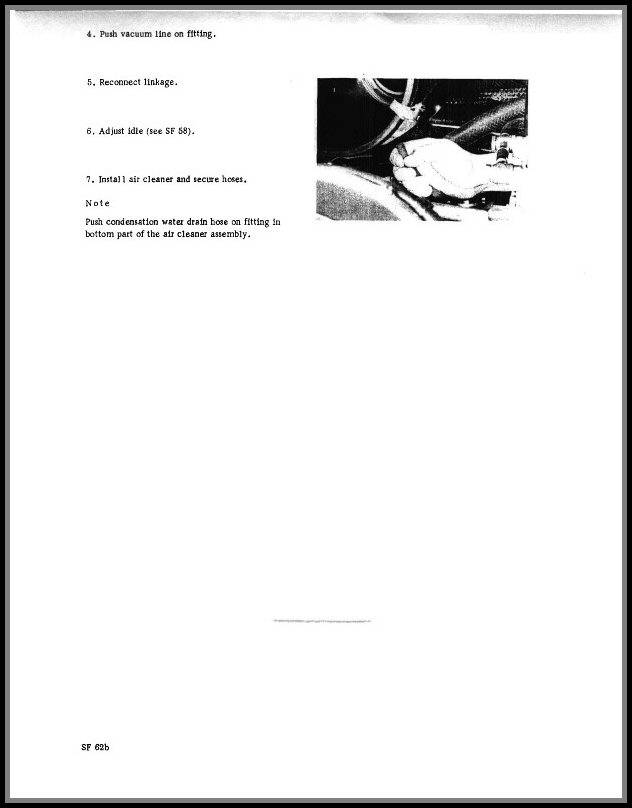

Removal and Installation
Page 2

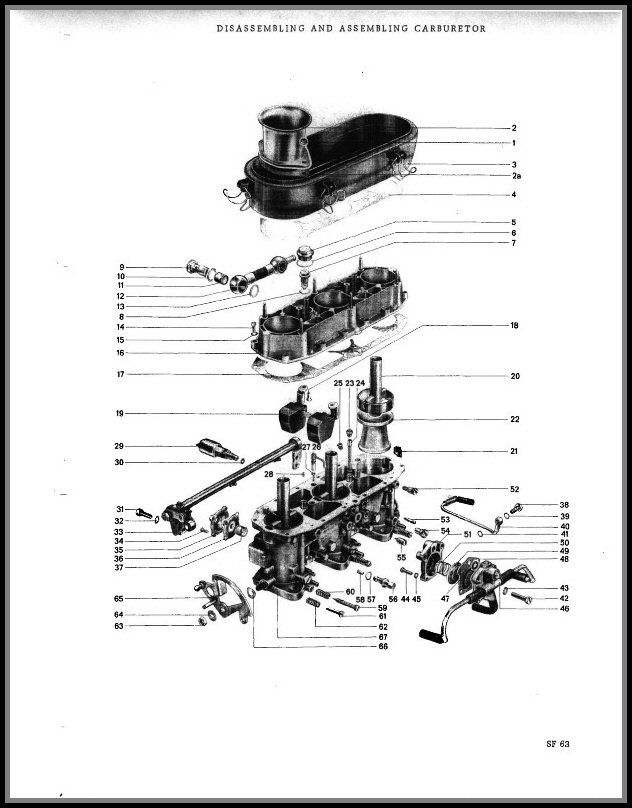

Exploded View

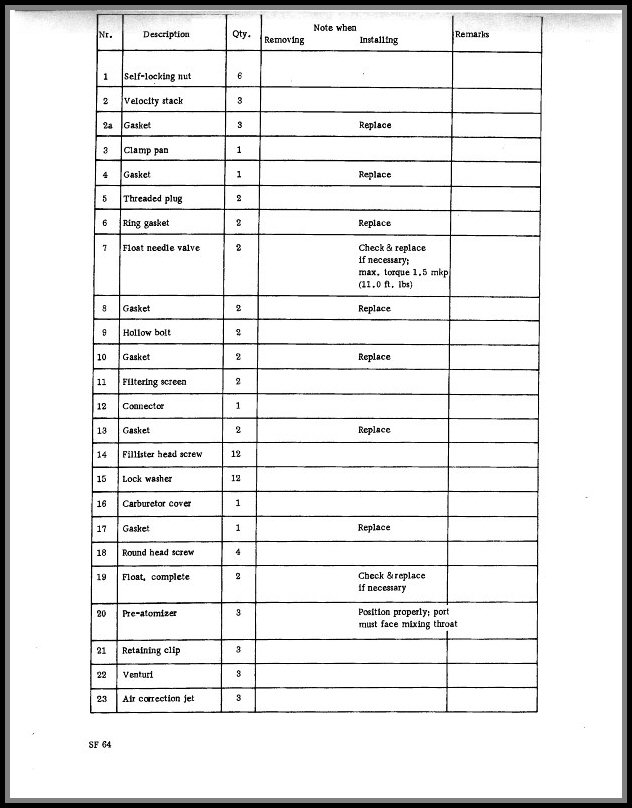

Parts List
Page 1

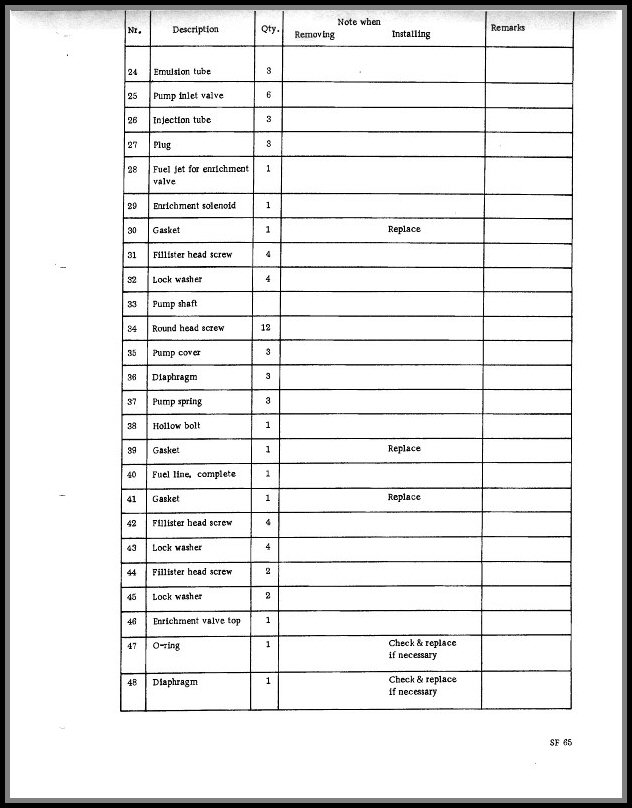

Parts List
Page 2

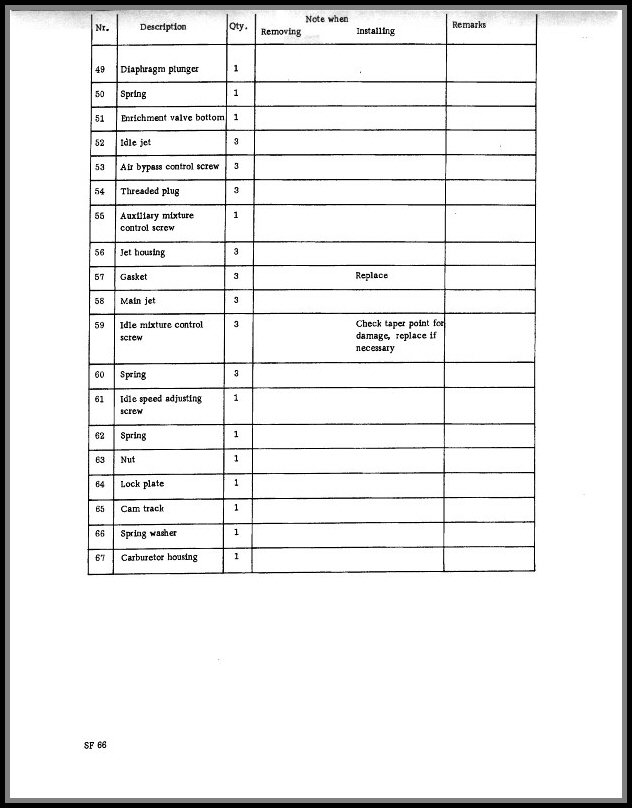

Parts List
Page 3

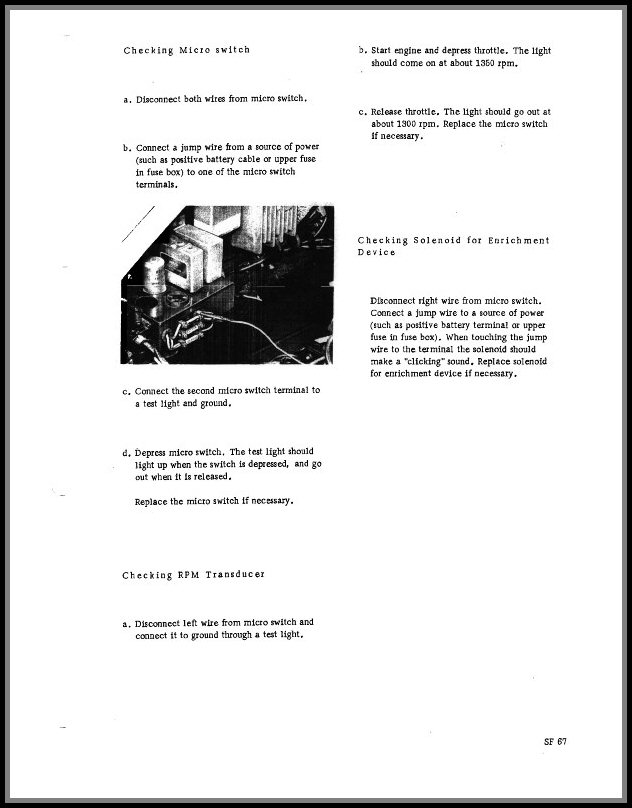

Microswitch and Solenoid

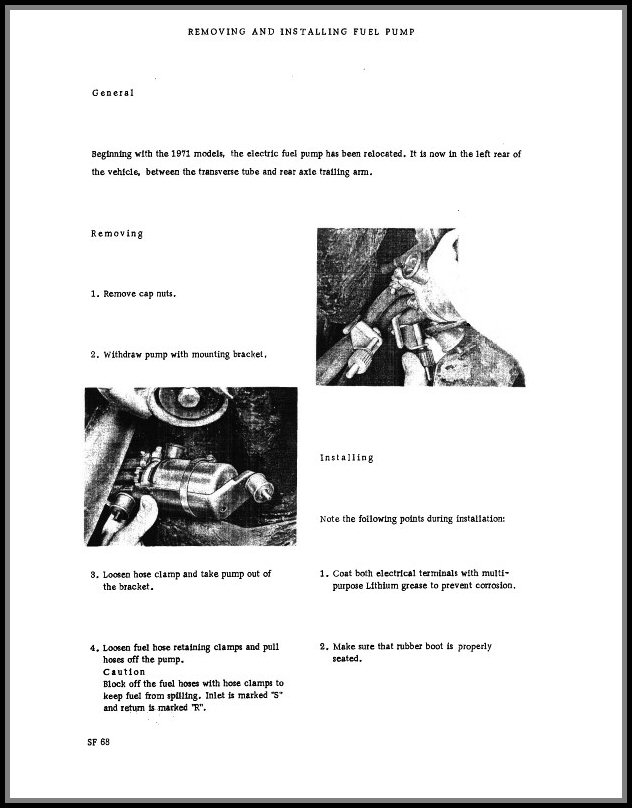

Removing and Installing Fuel Pump
